The Ukrainian company Kvertus has developed a special vehicle-mounted electronic warfare (EW) system called AD CERBERUS, with an effective range of over 100 meters—depending on operating conditions.
“AD CERBERUS is a modular EW system designed to be installed on vehicles to protect them from attacks by radio-controlled drones. It features external antennas and allows building EW systems with a custom set of 1 to 12 frequency bands,” the company’s website states.
The company explained that the system’s installation is based on a modular principle. The user of AD CERBERUS can assemble up to three modules or use just one.
“One module can contain 1 to 4 frequency jamming bands, chosen by the user. So, we ended up with a kind of ‘EW IKEA’—adaptive and affordable,” Kvertus wrote on their Facebook page.

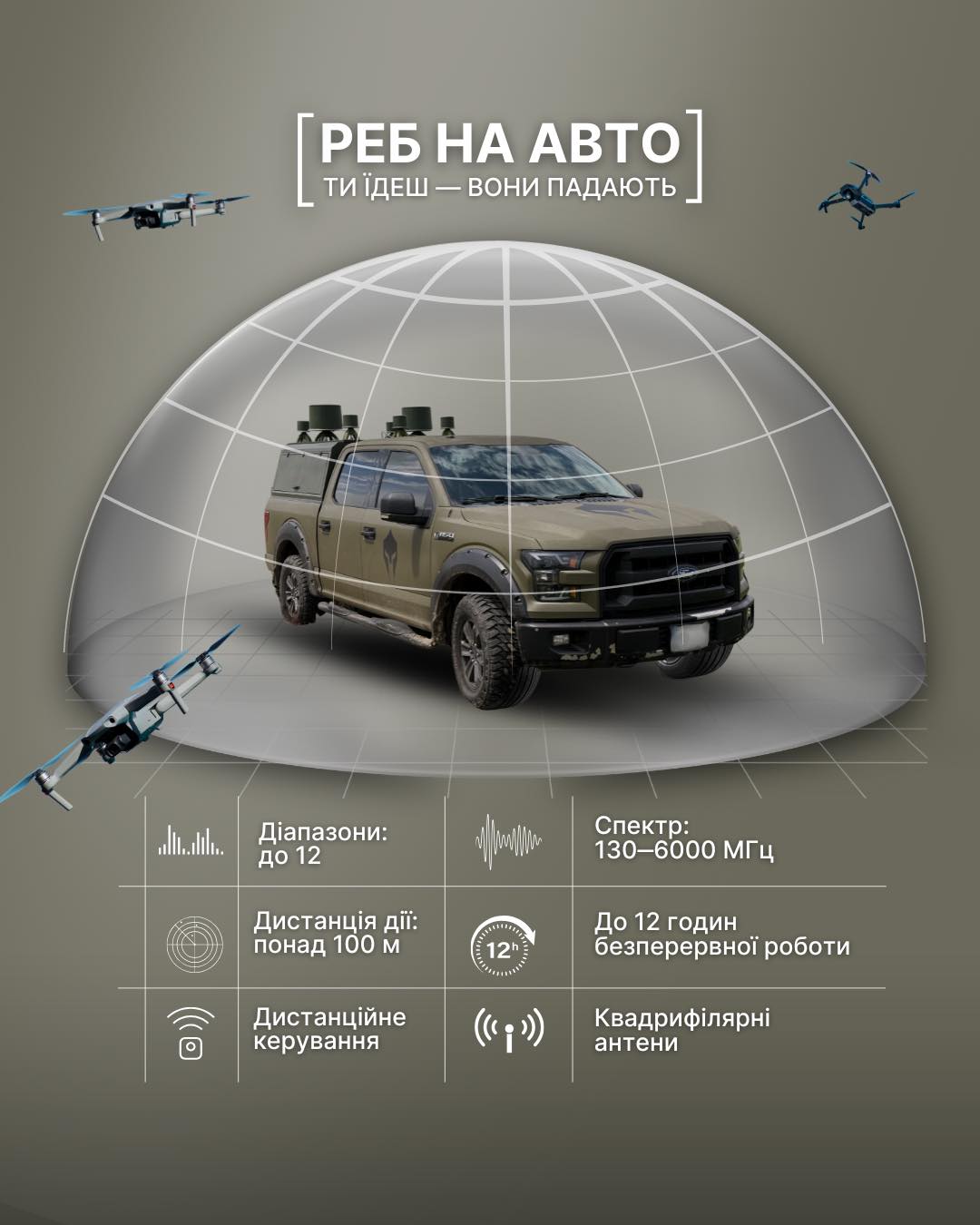

The manufacturer clarified that the jamming signals are emitted by quadrifilar antennas that create reliable dome-shaped protection.
The company’s website also states that the system can operate continuously for up to 12 hours with one-hour breaks between cycles when powered from a 220V AC mains supply. The system’s readiness time is no more than 30 seconds.
TECHNICAL SPECIFICATIONS:
- Effective operating range: over 100 meters (depending on application conditions).
- Protection rating: IP65.
- Antennas (for any frequency range):
– External quadrifilar antennas with 360-degree omnidirectional pattern, equipped with 1.5 m or 3 m cables.
– External directional antennas with fixed elevation angle, equipped with 1.5 m or 3 m cables.
– External collinear antennas with spring-joint connection, equipped with 1.5 m or 3 m cables. - Remote control:
– Wired control panel (20-meter cable).
– Enables independent activation of each frequency channel.
– Includes a master system activation button. - Mounting of the main module: magnetic base.
- Mounting of external antennas: magnetic base.
- Power supply:
– 220V AC, 50 Hz
– 12V or 24V vehicle power supply
– battery or generator - Continuous operation time: up to 12 hours, with a 1-hour break after each cycle when powered from 220V AC.
- Cooling: active.
- Startup time: no more than 30 seconds.
